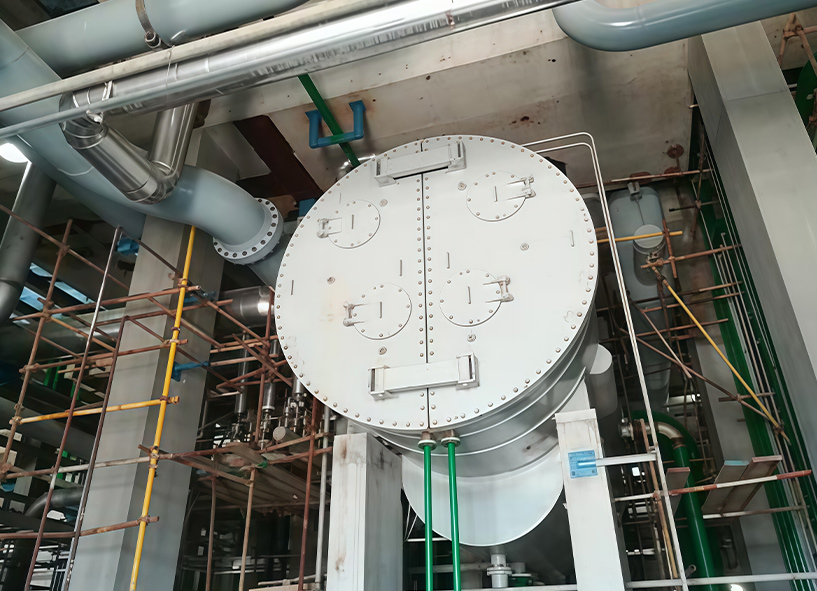

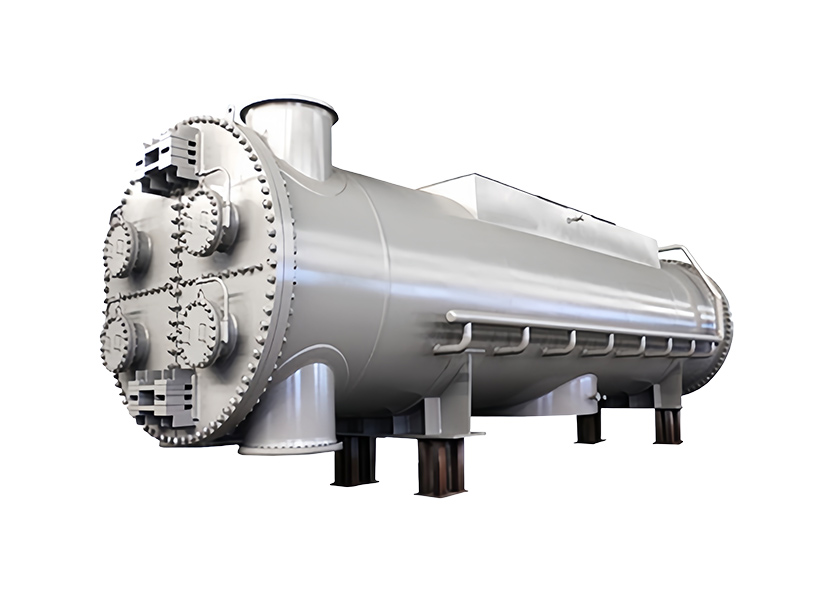

The function of the condenser is to condense the steam coming from the turbine exhaust. A high vacuum is maintained to extract steam and then cooled vis-a-vis condensed through an exchange of heat with the cooling water from a separate source.
The subsystems comprised are indicated below:
Steam Ejectors or External Vacuum Pumps, Vacuum Breaker;
Circulating Water Pump System or Cooling Towers;
Condensate Extraction Pumps;
Heat Exchangers (Drain/Gland Steam Cooler, LP Heaters).
Shell and tube heat exchangers stand out as one of the most popular types of heat exchangers used in industry today. Renowned for their versatility, ease of maintenance, and availability in a range of sizes, they cater to diverse applications.
View More
Safety heat exchangers are used wherever the highest requirements for product purity in process engineering (such as food/chemical/pharmaceutical industry) are required
View More
Vaporizers are widely used for heating liquefied gas to convert it into a gaseous state.
View More
The TEMA heat exchanger refers to a shell and tube heat exchanger built according to the standards established by the Tubular Exchanger Manufacturers Association (TEMA).
